INF Input Regulator
Smooth, gentle heat regulation for single-element Infratech heaters up to 3000 watts.
Precise Heat, Simplified.
The Infratech INF Input Regulator offers a low-cost way to moderate output on single-element heaters up to 3000 watts. Rather than dimming the heater, INF gently cycles it on and off at regular intervals when not running at full power — delivering efficient, comfortable heat control. Available in multiple mounting configurations to suit any installation, indoors or out.
Not a Dimmer
INF regulates output by gently cycling the heater on and off at regular intervals when not on full power, rather than dimming.
Low-Cost Control
An affordable control option for single-element heaters up to 3000 watts (maximum 15 amps).
Flexible Mounting Options
Available as an in-wall stainless steel plate with deep gang box, flush-mount weatherproof cover, or surface-mount weatherproof box to suit indoor, protected, or fully exposed outdoor areas.
Built to Last
Proudly made in the USA and backed by Infratech's 3-year warranty.
Specifications
| Compatibility | Single-element Infratech heaters up to 3000 watts |
| Max Amperage | 15 amps |
| Voltage | 240V (also available in 120V) |
| Regulator Type | Cycling input regulator (not a dimmer); each heater requires its own INF Input Regulator |

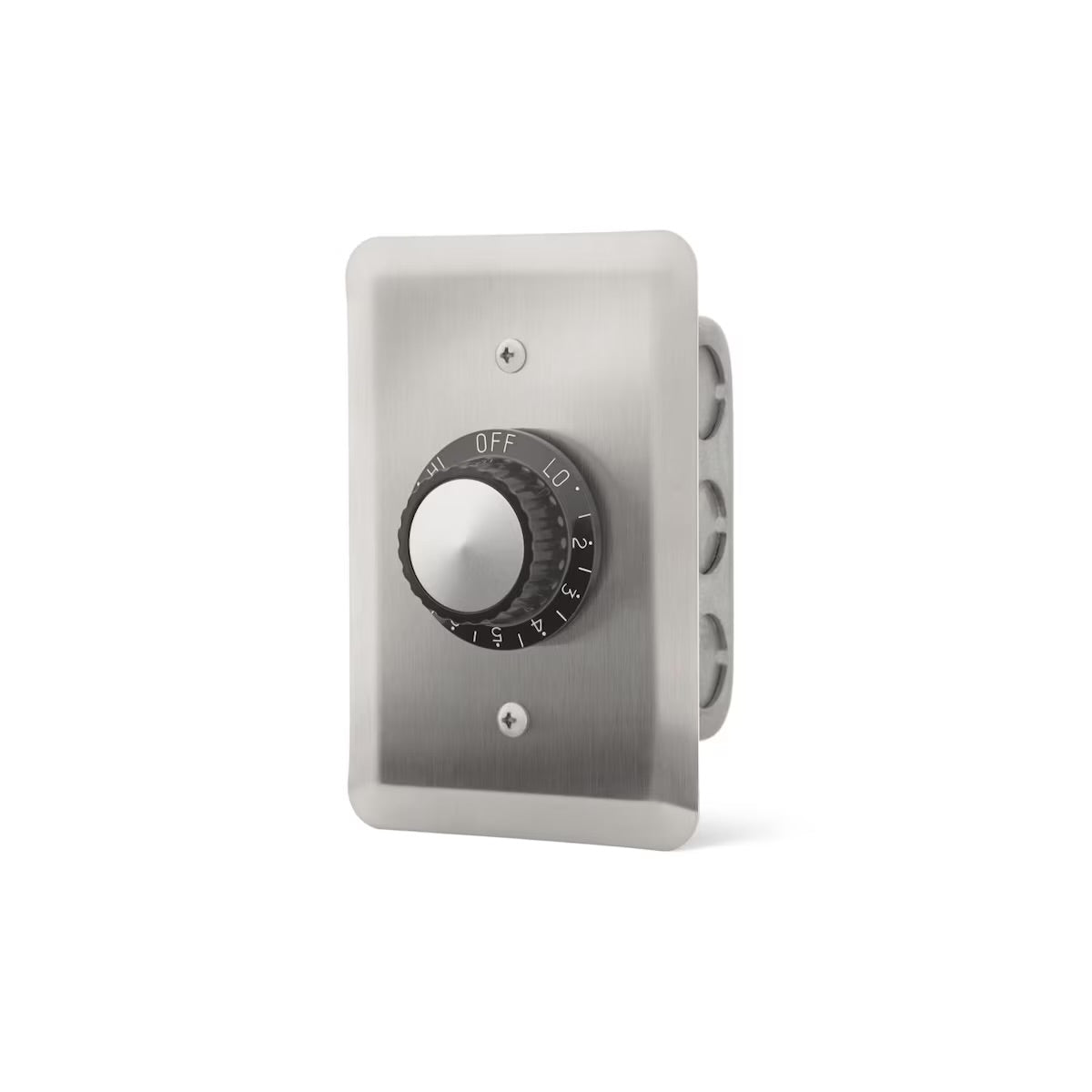

| In-Wall, Single (Indoor/Protected) | 14-4200 · Single Stainless Steel Wall Plate w/ Deep Gang Box |

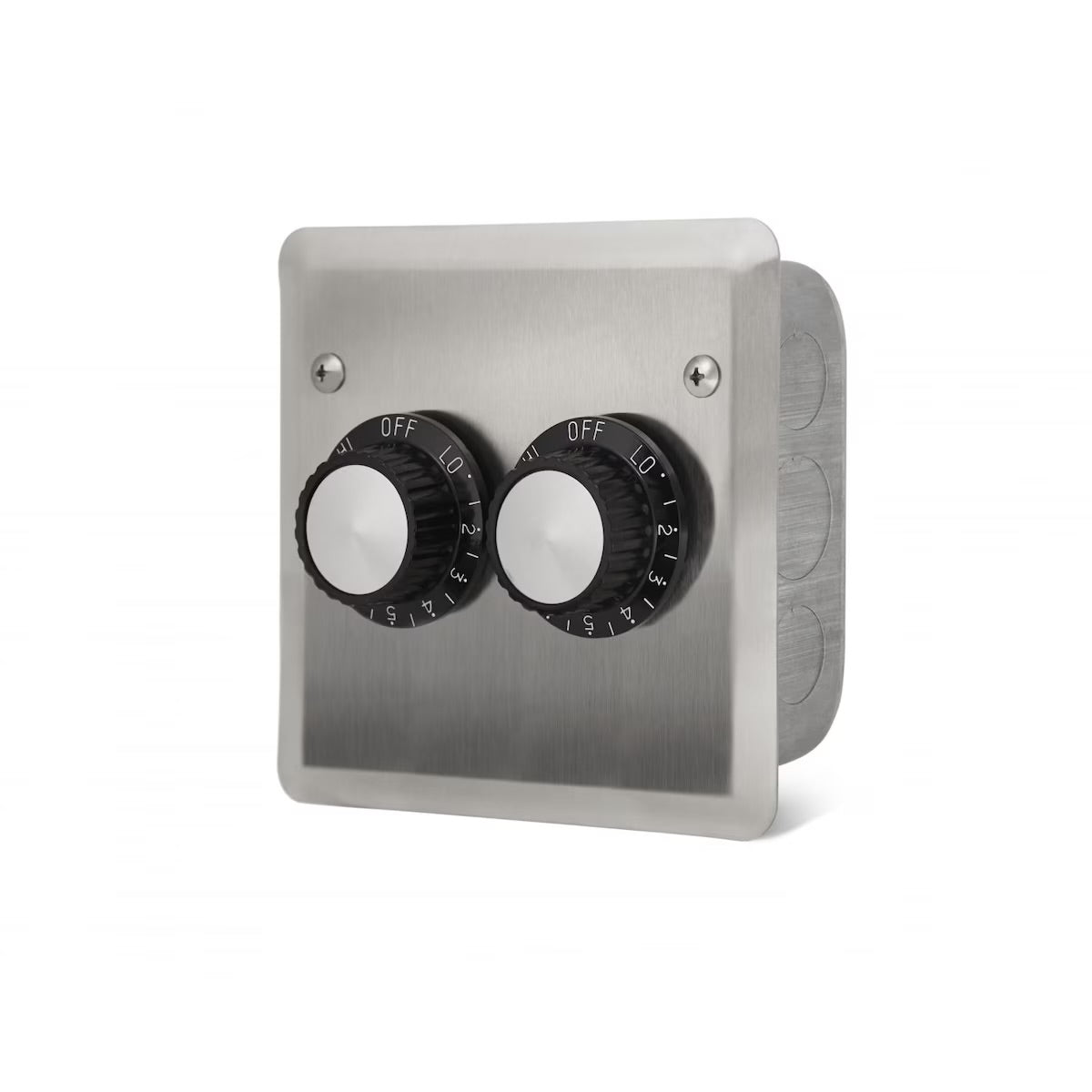

| In-Wall, Dual (Indoor/Protected) | 14-4205 · Dual Stainless Steel Wall Plate w/ Deep Gang Box |

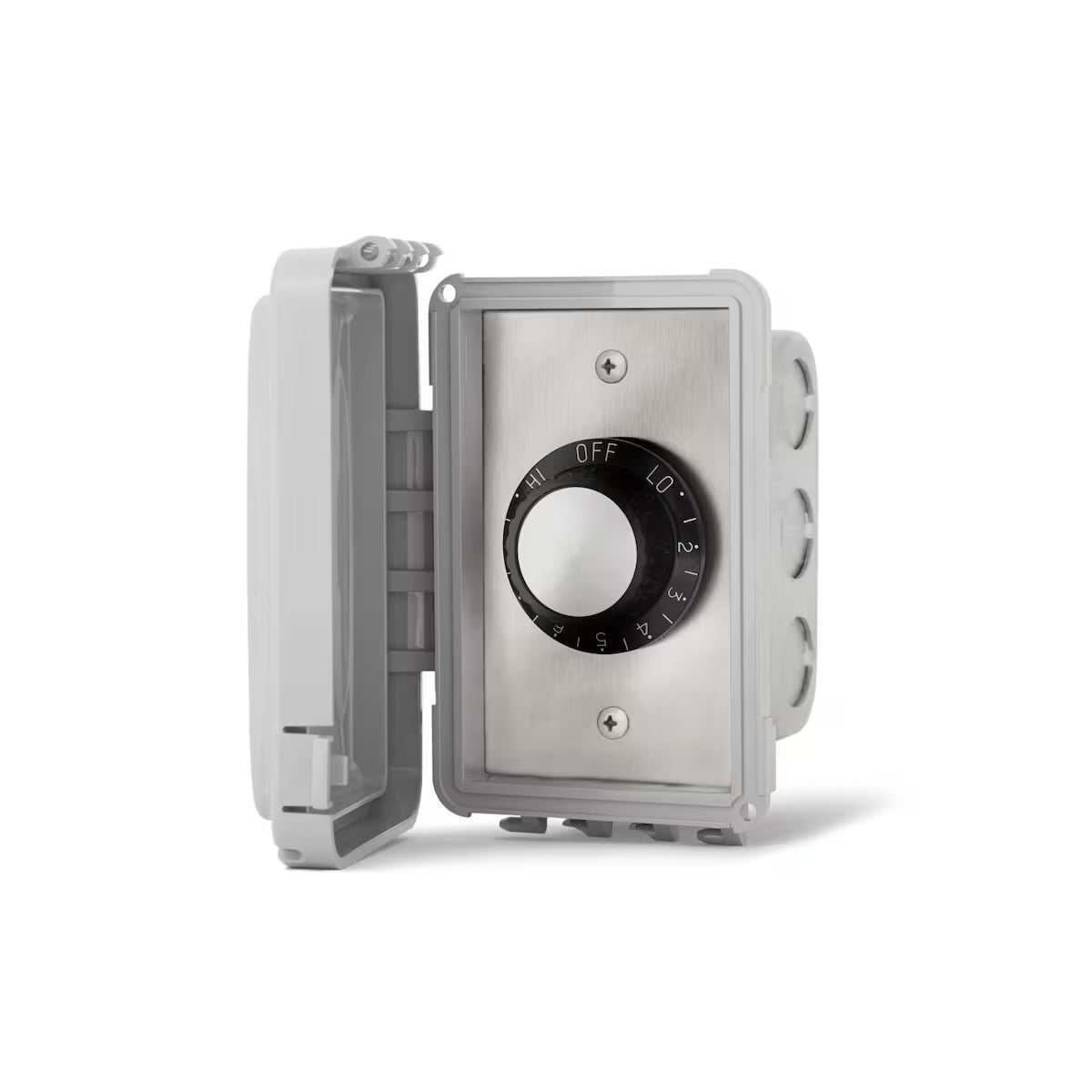

| In-Wall, Single (Exposed Outdoor) | 14-4210 · Single Flush Mount w/ Weatherproof Cover |

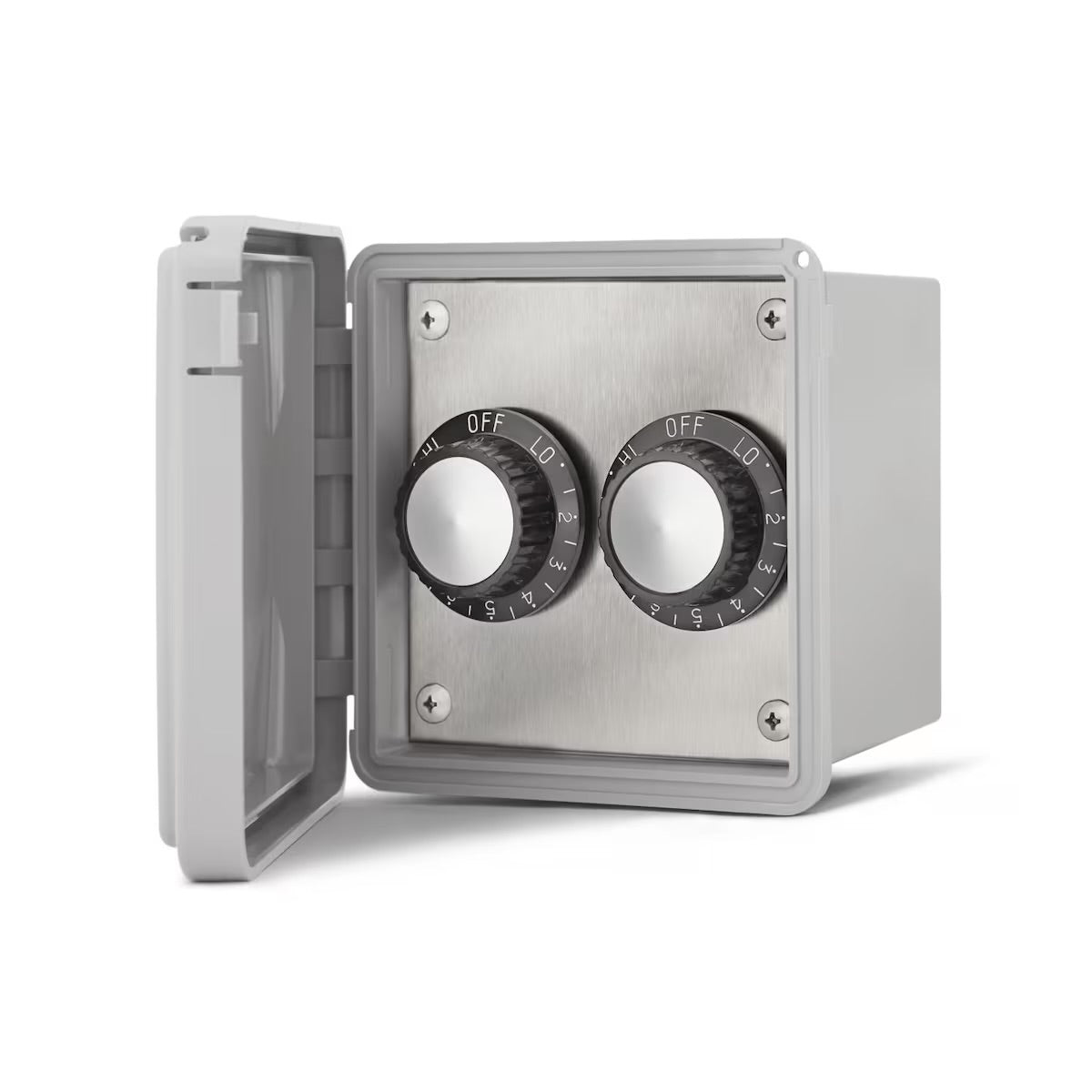

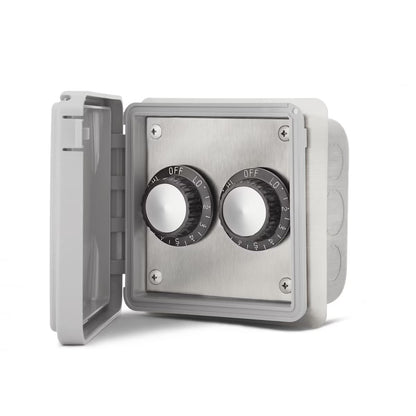

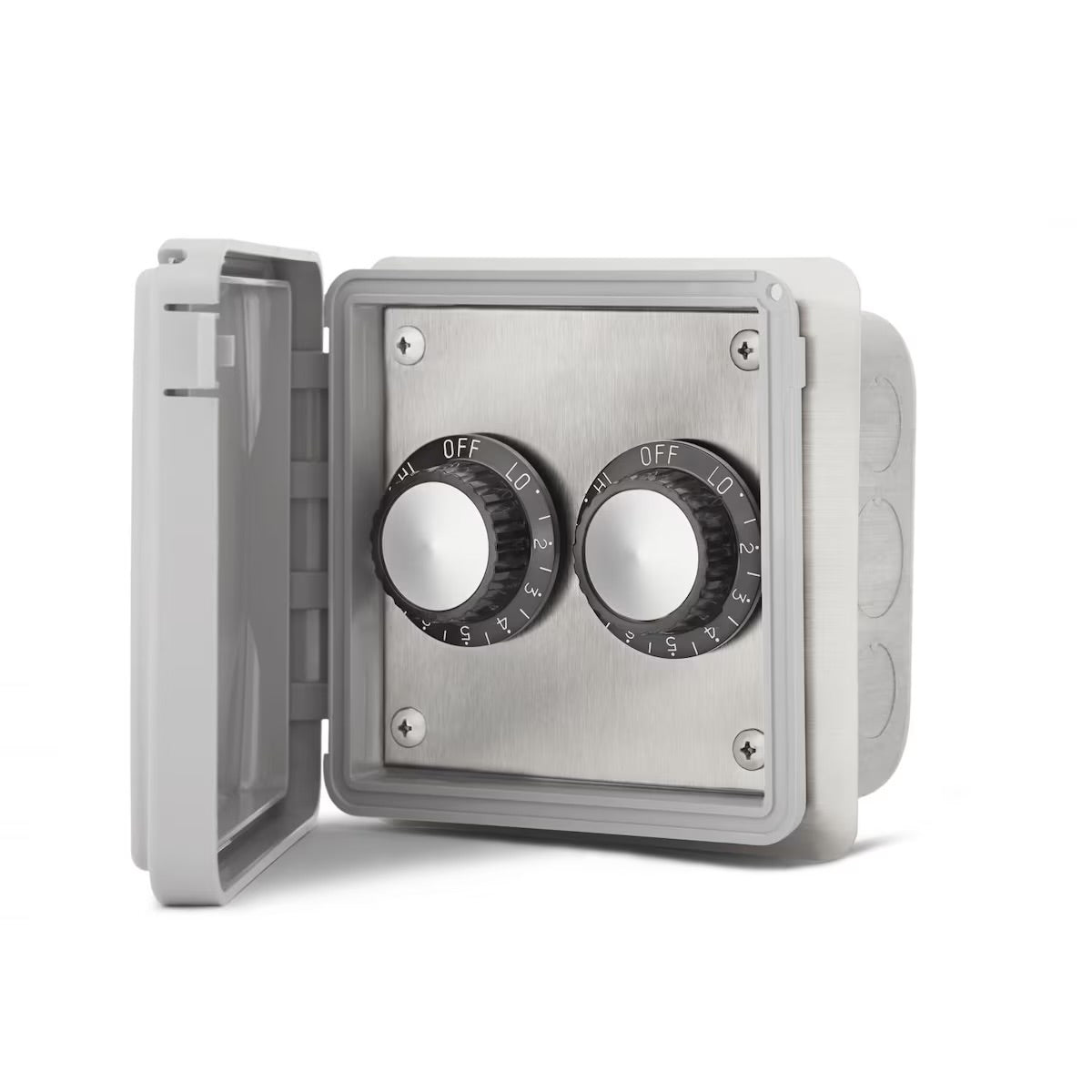

| In-Wall, Dual (Exposed Outdoor) | 14-4215 · Dual Flush Mount w/ Weatherproof Cover |

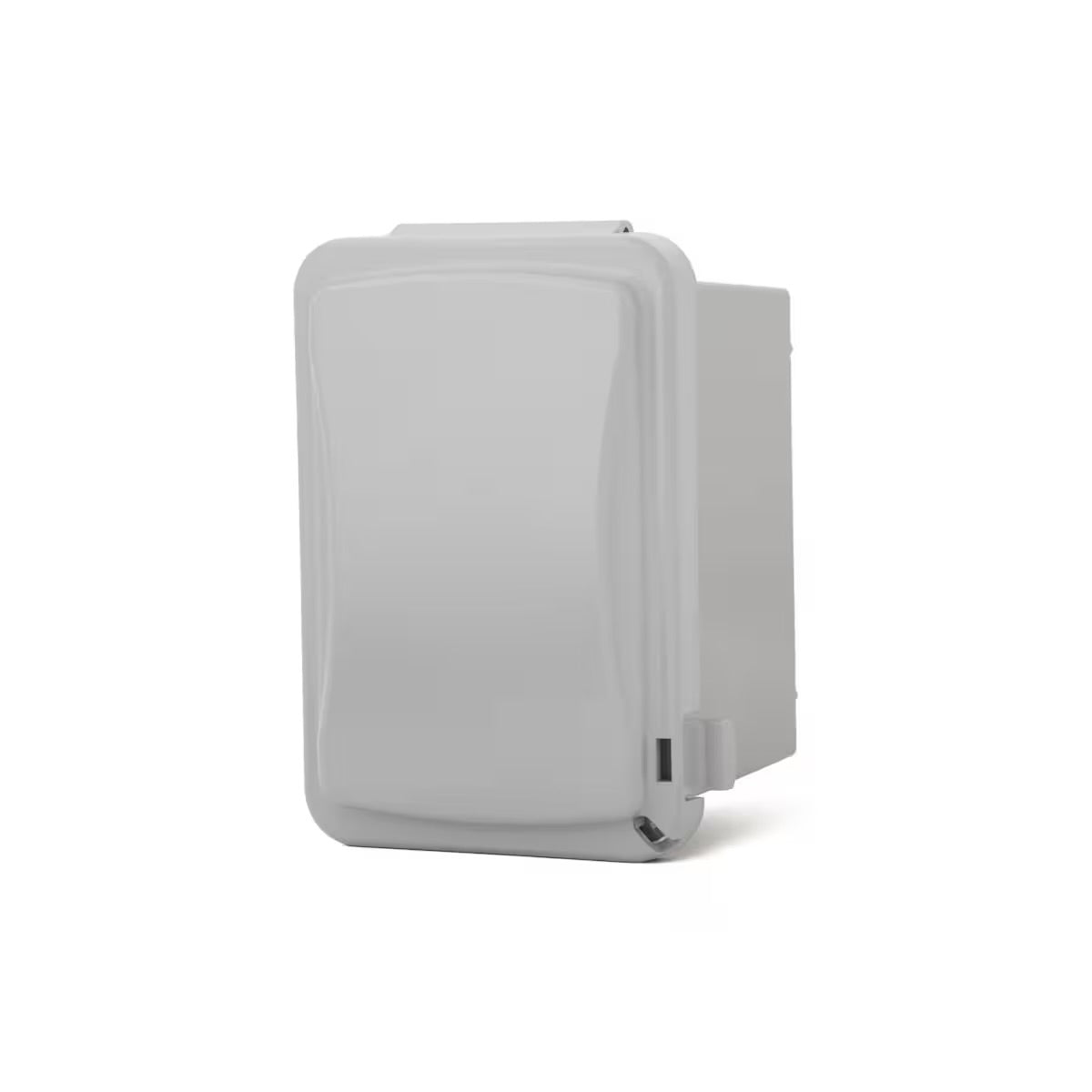

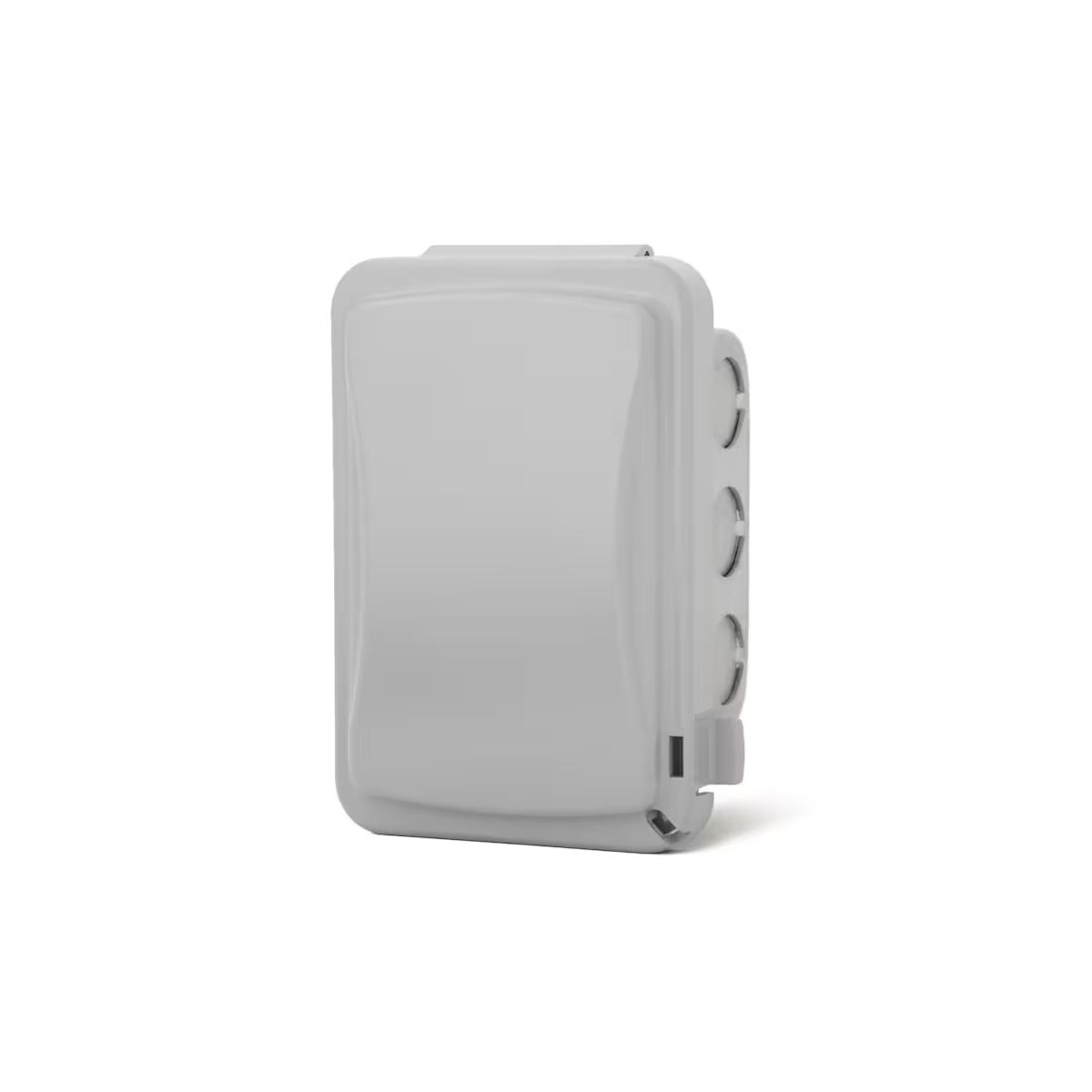

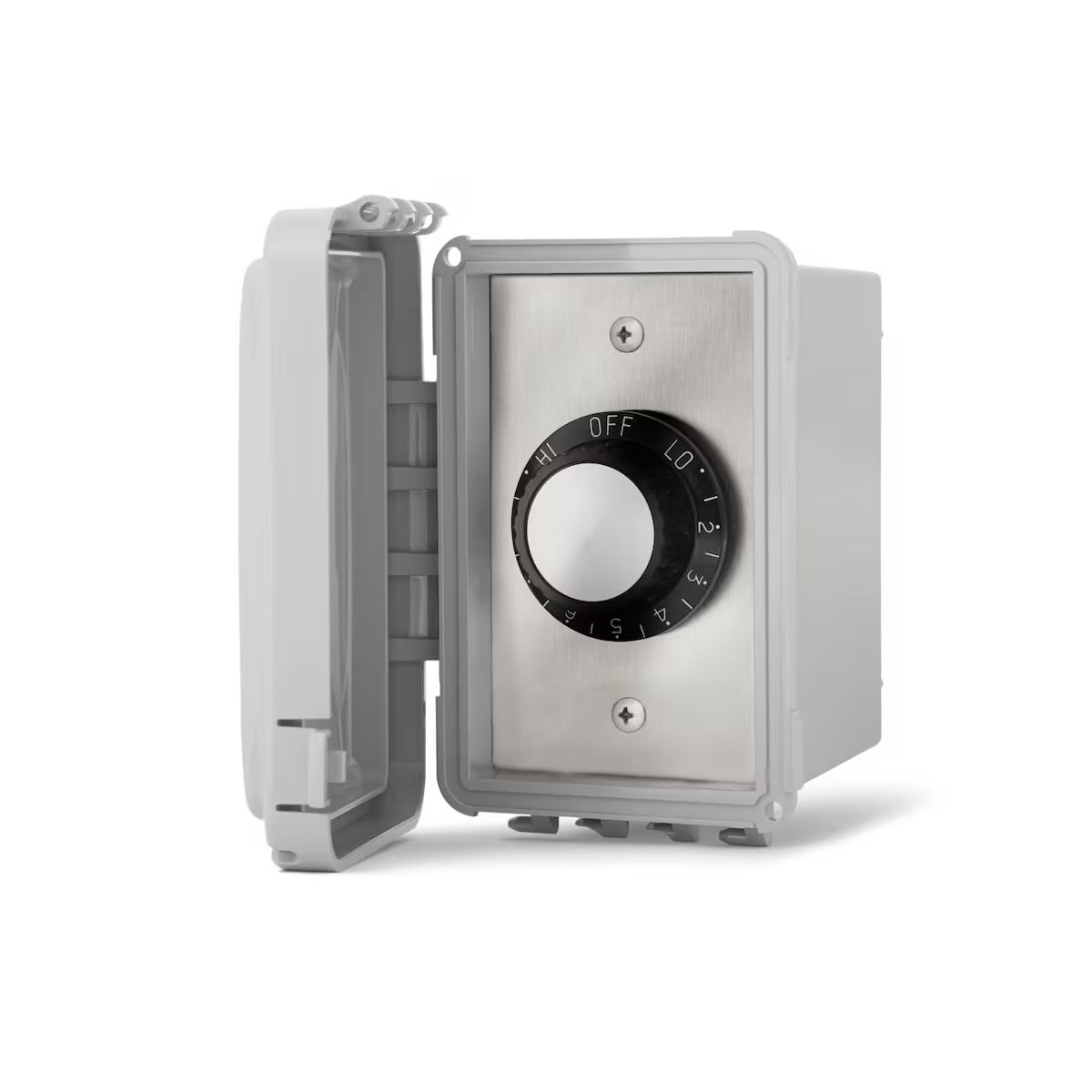

| Surface Mount, Single (Exposed Outdoor) | 14-4220 · Single Surface Mount w/ Weatherproof Box |

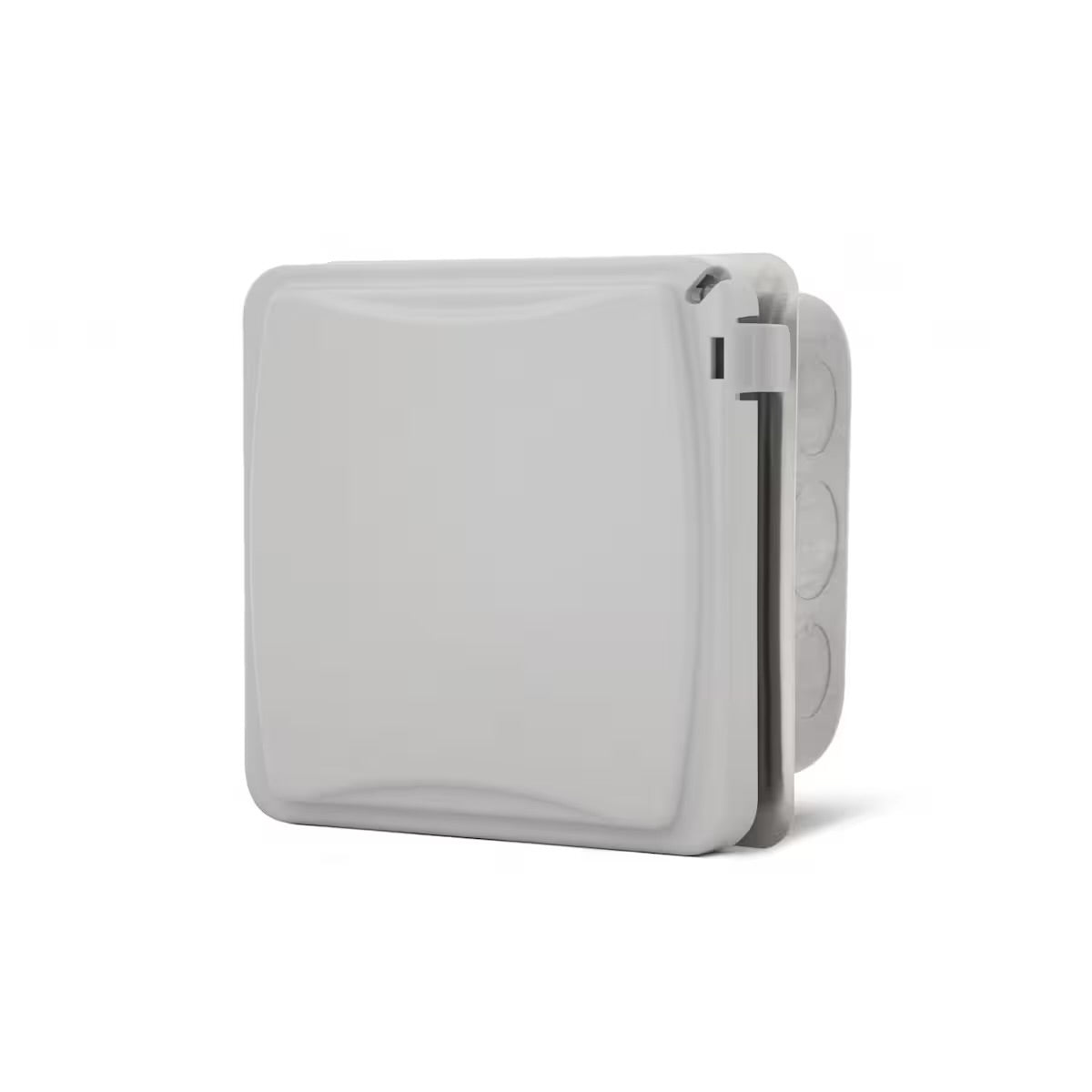

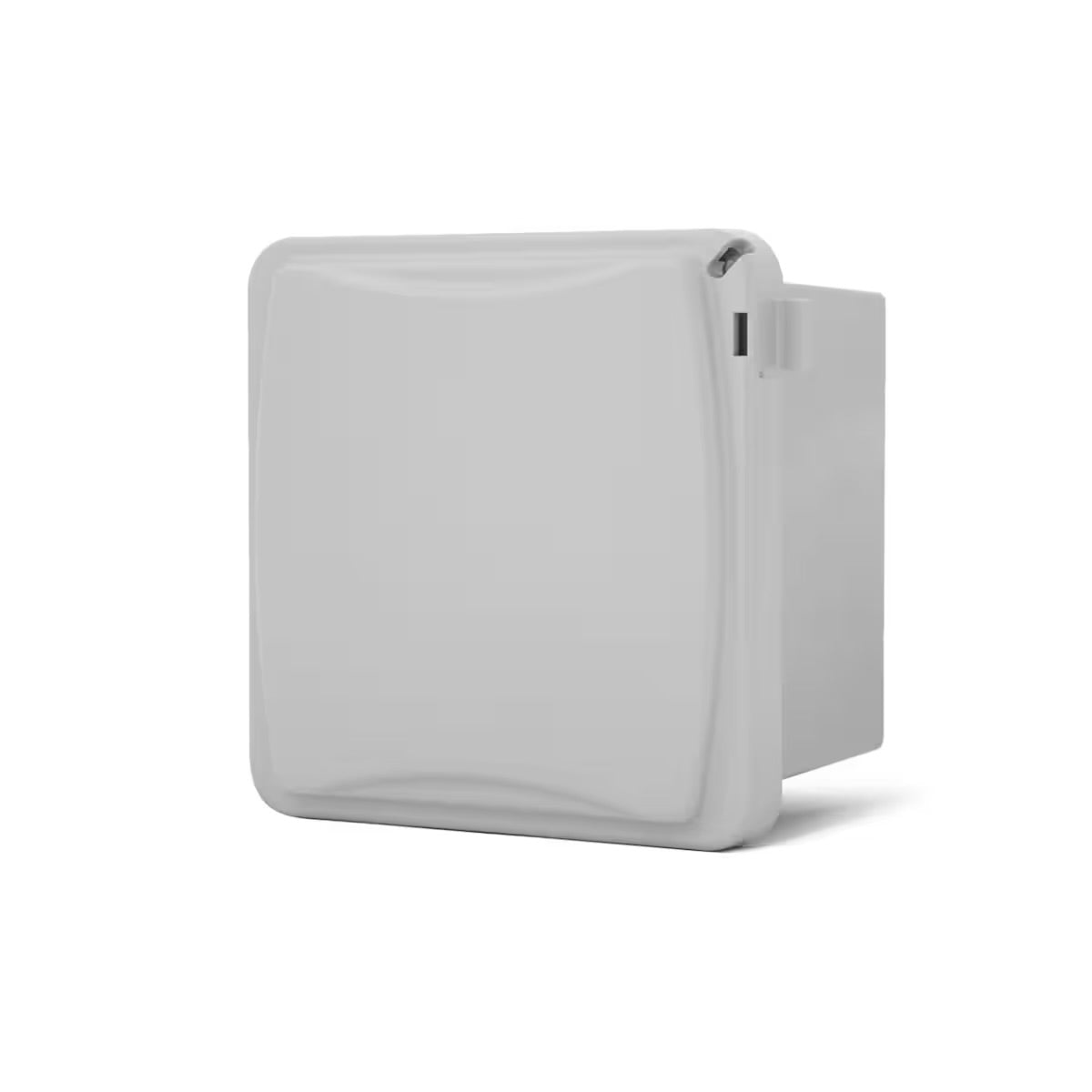

| Surface Mount, Dual (Exposed Outdoor) | 14-4225 · Dual Surface Mount w/ Weatherproof Box |
| Warranty | 3 years |
Configuration Note
Each single-element heater requires its own dedicated INF Input Regulator. Select the mounting configuration that matches your installation — in-wall with a deep gang box for indoor or protected areas, or a weatherproof flush- or surface-mount enclosure for fully exposed outdoor locations — and choose single or dual gang depending on how many heaters you're controlling from one location. Part numbers listed are for 240V; 120V versions are also available.
